Datum Modifier - Maximum Material Boundary (MMB) Check

[[Ar...]]

How to inspect the part with datum modifier example PROFILE TOLERANCE 0.0900 TO DATUM A | BⓂ | CⓂ. Do we have option in GOM 2021 to call for Datum Modifier



[[Di...]]

Hi Arun,

you first have to check the elements either with independency principle, envelope principle or linear size because the size is needed

for the computation.

You will find those checks in I-Inspect -> GD&T Quick Creation.

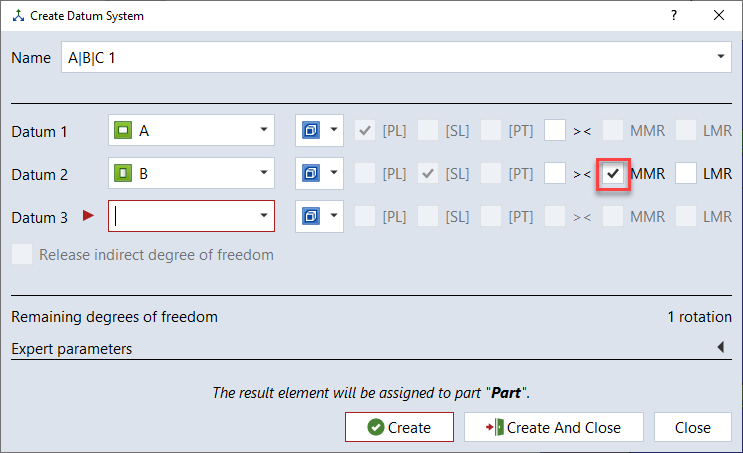

Afterwards you can simply enable the usage of MMR inside of the create datum system dialog

Hope this helps.

Best regards

Dinko



[[Ar...]]

Thank you Dinko
