Local CAD comparison without sharp edges of Cad model

[[Go...]]

Hello :-),

I need to make a local CAD comparison with meshes of CAD model.

But the model have sharps corners and the actual part doesn't, so the result isn't convincing :



I would like to "exclude" the sharhe edge from my mesh selection.

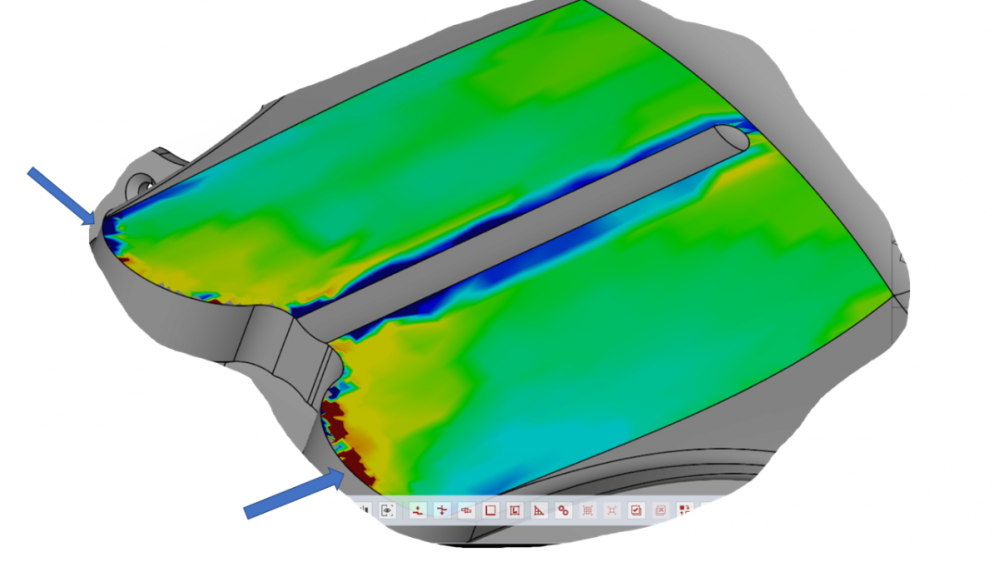

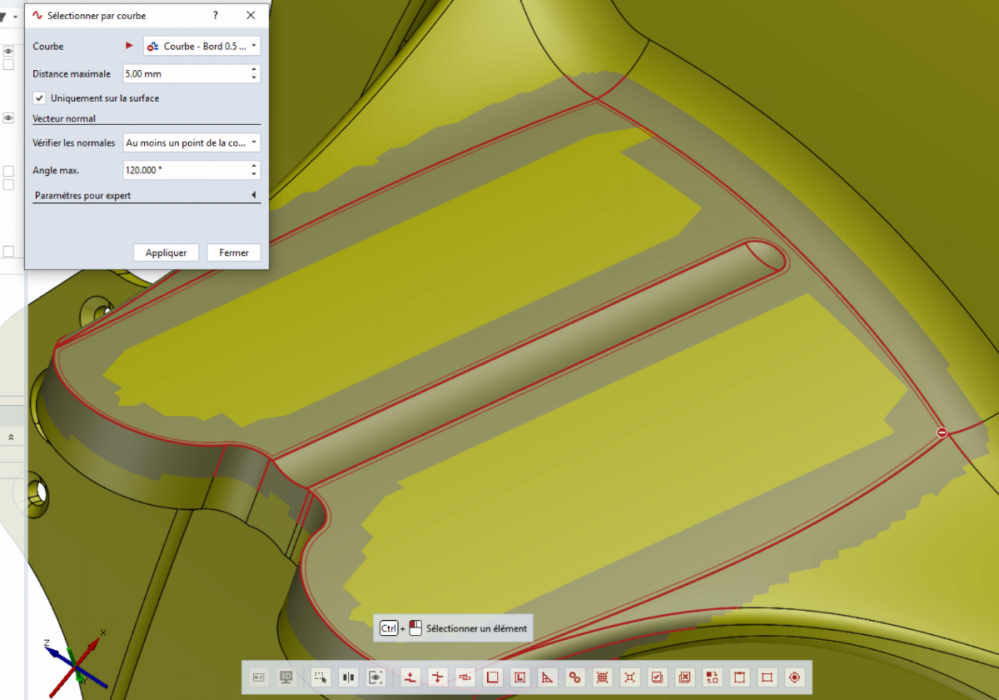

I tried to use a surface curve from 0.5mm of border but I can't make a surface selection "inside" it only "on" it:

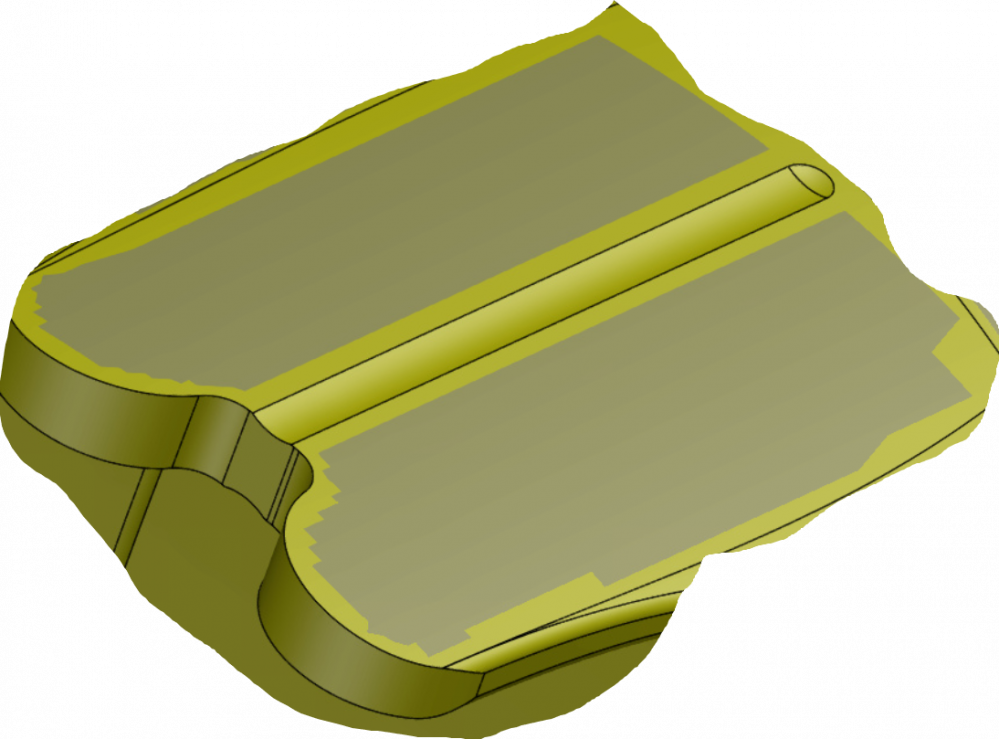

I would like a area selection ("manualy" done)  like below :



Do you have an idea ?

Best regards,

Sylvain

[[Be...]]

Hi,

Idea:

• Select patches on CAD
• Decrease the selected region with the according command

Hope this helps?!

Regards,

Bernd

[[Lu...]]

Edit the ACTUAL surface or geometry OR when you apply the Measuring Principle. look for the "Decrease selection at borders" option and check it.



[[Go...]]

Hello Luis,

Thank you for your answer, it's exactly what I need !

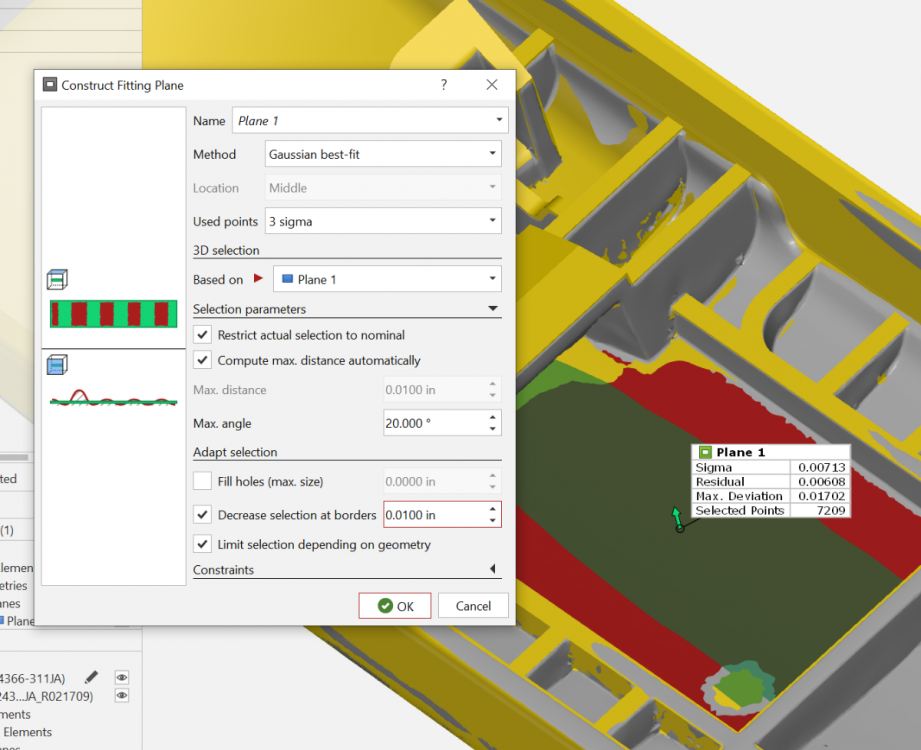

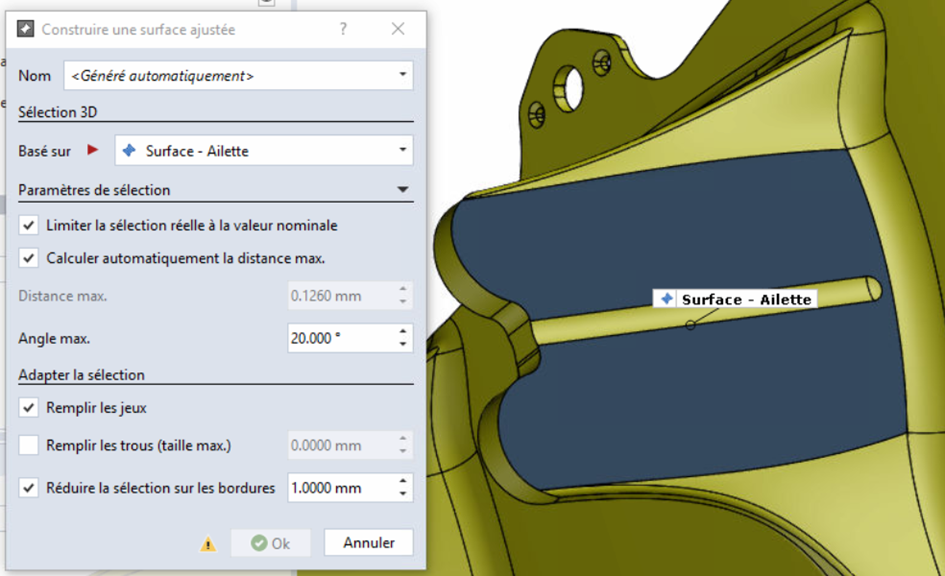

I have constructed a Surface and apply Construct Fitting Surface method :

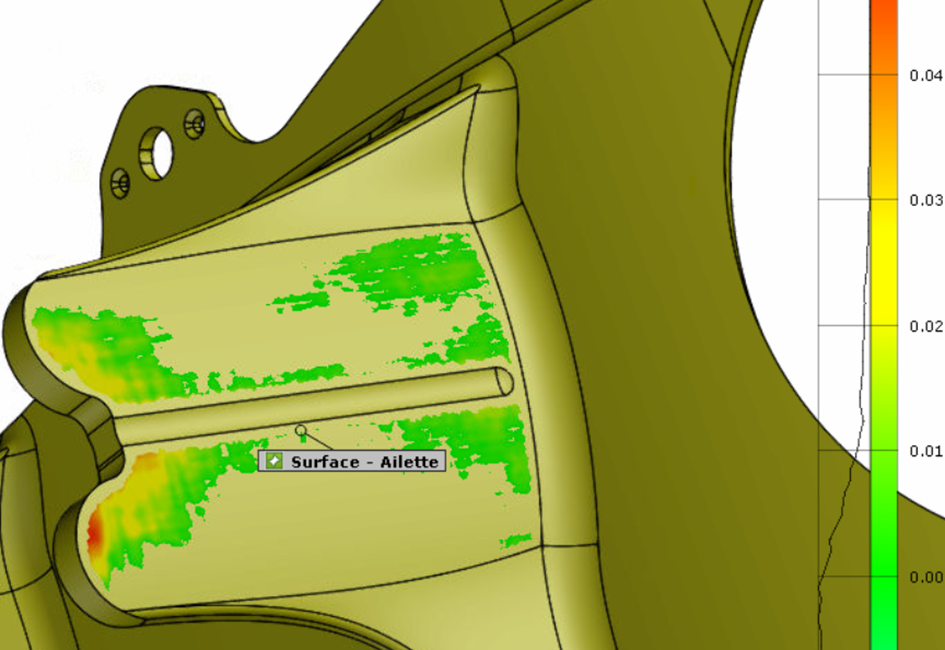

Result :





Best regards,

Sylvain.

[[Go...]]

Please sign in to view this quote.

Hello Bernd,

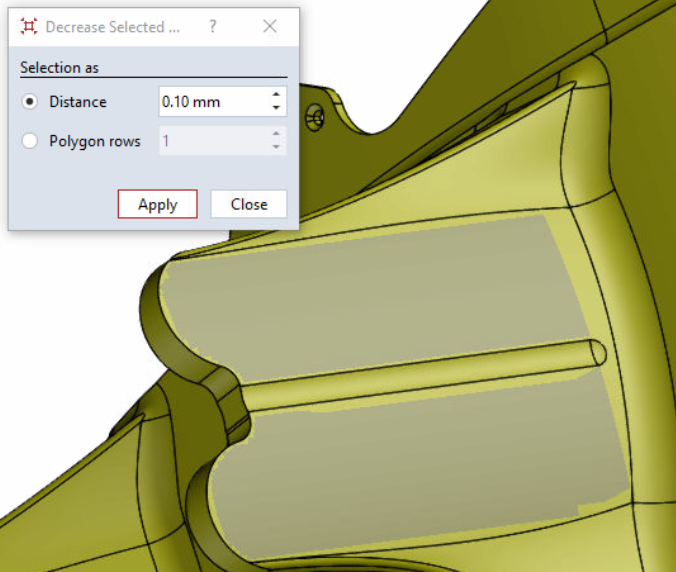

Following to your message, my team mate (Aka Kevin) show me the Decrease Select Area :



But I have chosen to make a fitting surface with Decrease selection at borders (see Luis' message) because it's more "accurate" for my need.

Thank you for your answer.



Best regards,

Sylvain.



Edited January 6, 2023

[[Lu...]]

Sylvain,

If you going to work on the CAD make sure the "CAD triangulation parameters" is appropriate.

Also i found that some times it will not do it on the Actual data.

Regards

[[Go...]]

Please sign in to view this quote.

Ok, thanks 😃

[[Mi...]]

This might not be an option for you, but when I run into this issue, I create radii on the edges of the CAD model. I'll generally take a quick measurement of the scan object radius first, then go into NX and put edge radii of that same size where I need them on the CAD model.

Edited February 1, 2023
Didn't mean to say CAD
