GD&T filter on surface profile


---
 Share

Recommended Posts

---

Hello guys,

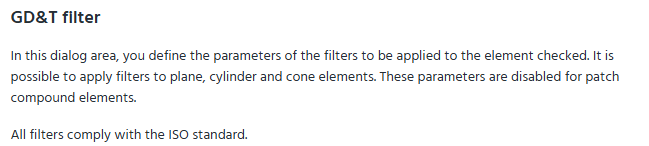

I have a question about the GD&T filter, especially when applied to surface profile tolerances. The techguide states that the GD&T filters can be applied to planes, cylinders and cones for surface profiles, but not for patch compound.

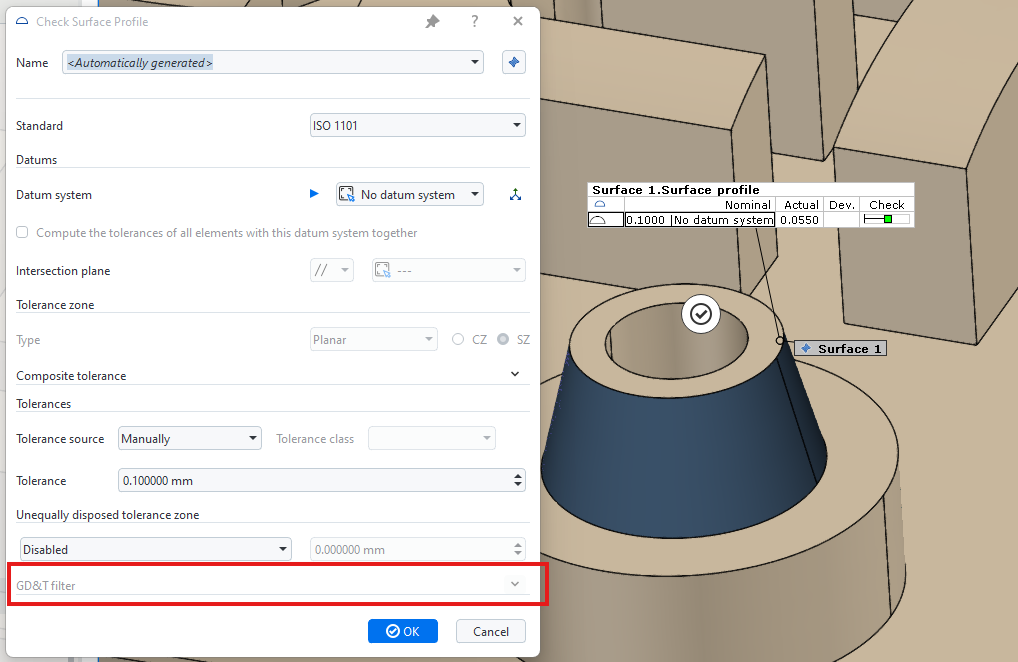

Unfortunately, I have been unsuccessfully trying to call up the GD&T filters for some time now. In every surface profile check, the filter options are always disabled.


I tried different things:

  • surface profile with and without datum systems
  • surface profile on a single cad patch or multiple cad patches
  • surface profile on planes, cones, cylinders or freeform surfaces

None of this allows me to open the GD&T filter. What am I doing wrong here?

Best regards

Lukas

Edit: I'm using version 2025.3.1.6

Edited
Link to comment
Share on other sites

---

The information in the Tech Guide is still correct, i.e. it is possible to use a filter for a surface profile on a plane, cylinder or cone. To be sure I also checked that this still works in SW2025 as expected. In your screenshot you are not using a plane, cylinder or cone for the surface profile, but you said you tried those as well. Maybe there is a misunderstanding here. Please contact the software support if this continues to be an issue for you.



Edited
Link to comment
Share on other sites

---

Please sign in to view this quote.

Hello Michael,

Thank you for your quick reply. I have indeed found my error. When I check the surface profile via the I-Inspect menu (e.g on a cone), no cone is created as a nominal element, but a surface element. The filter does not work there. However, if I create a "real" cone it works.

Thank you!

  • Like! 1
