Adding Text to CAD Window in CALYPSO


---
 Share

Recommended Posts

Hi all,

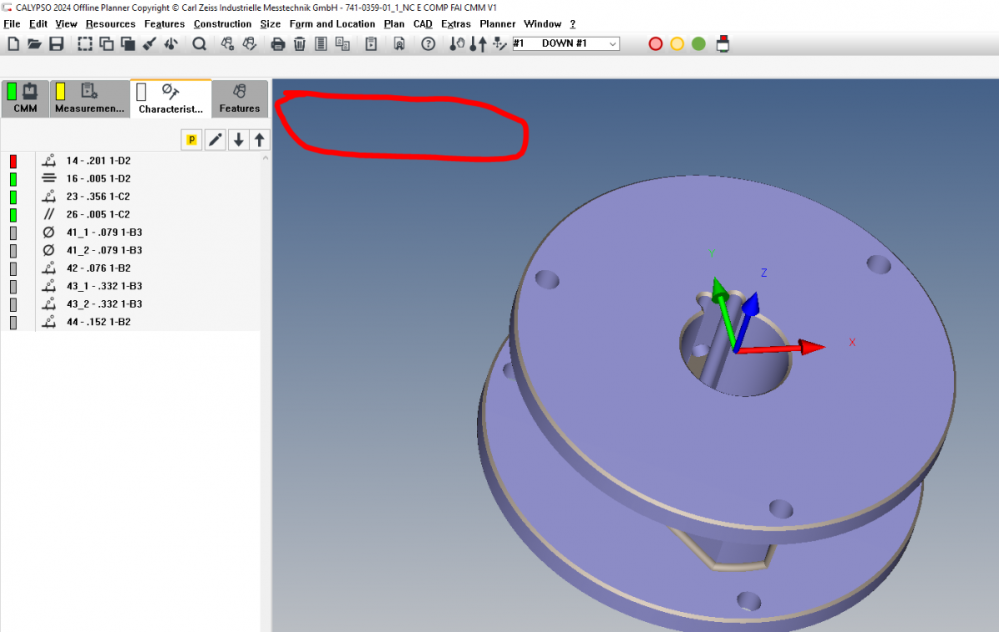

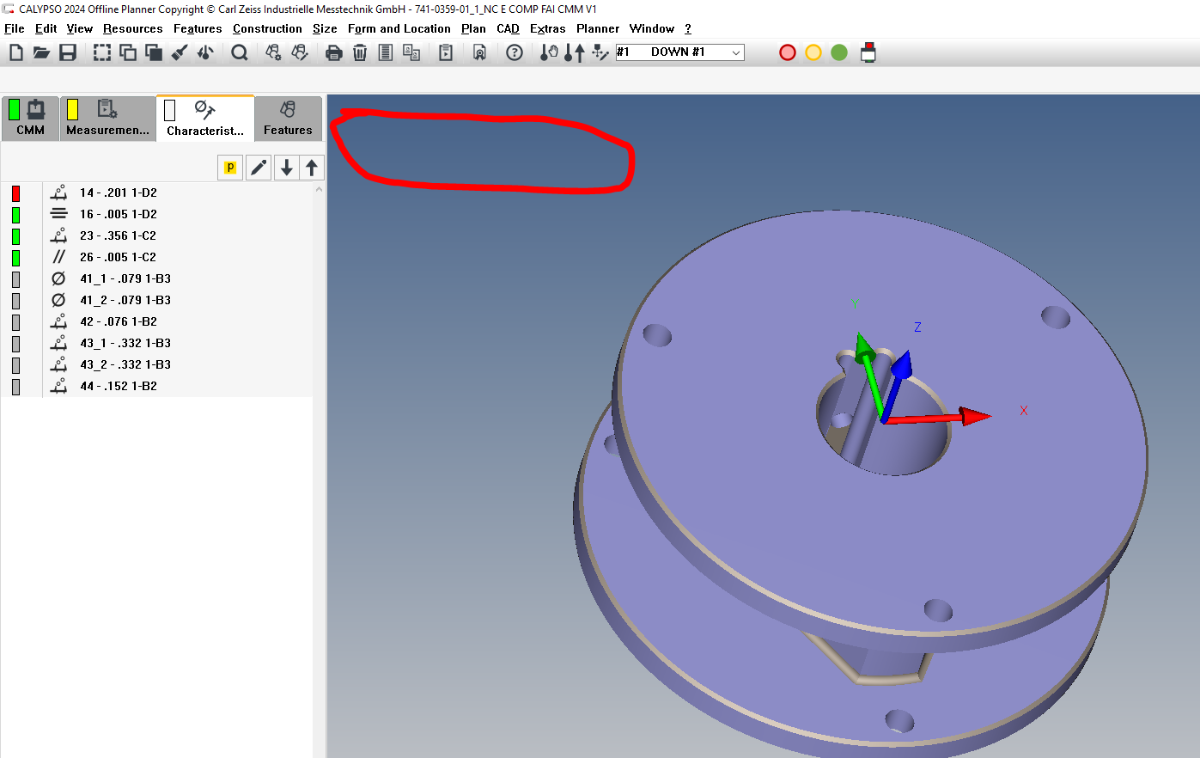

I was wondering if anyone knew how to add text to the CAD window in CALYPSO. Just like a simple instruction that is always displayed in a certain area in the CAD window (see image). I've seen it in CMM programs in CALYPSO before, but I've never done it myself.


Thanks!!

Link to comment
Share on other sites

I use what Owen described all the time, it lets me and or operator know if the model is up to date or for "Visual Only".

Up to date model:

Color GREEN

Part No. and Rev level.

Out of date, or visual only:

Color RED

"Visual Only"

Link to comment
Share on other sites

I so wish we could edit the color of the text and that the font was scalable without pixelating.

On-screen CAD window text is a very useful and underutilized tool.  It can be a quick verification that the correct measurement plan is loaded.  Yes, setup instructions and other embedded methods can also be used, but the CAD window is instant and noticeable.

Yes, I know... My Voice (sigh).

Edited
Link to comment
Share on other sites

I think I know 'how' to do it.

Would require executeCode() and sending messages to the Acis window, which I've done,

however the syntax gets a bit trick due to ' "quotes" '

Would be much easier for Zeiss.


  • Like! 2
  • Thank you! 1
Link to comment
Share on other sites

Please sign in to view this quote.

Yeah, we did that to a couple of programs. We run high production in process checks and the picture shows up every time you start it. After a bit we deleted the picture.

  • Like! 1
Link to comment
Share on other sites

In addition to that, or as an alternative put all your programs in autorun.

There is a field on the right that displays written instruction and a button

below that which will open a picture to go with the instructions.

Link to comment
Share on other sites

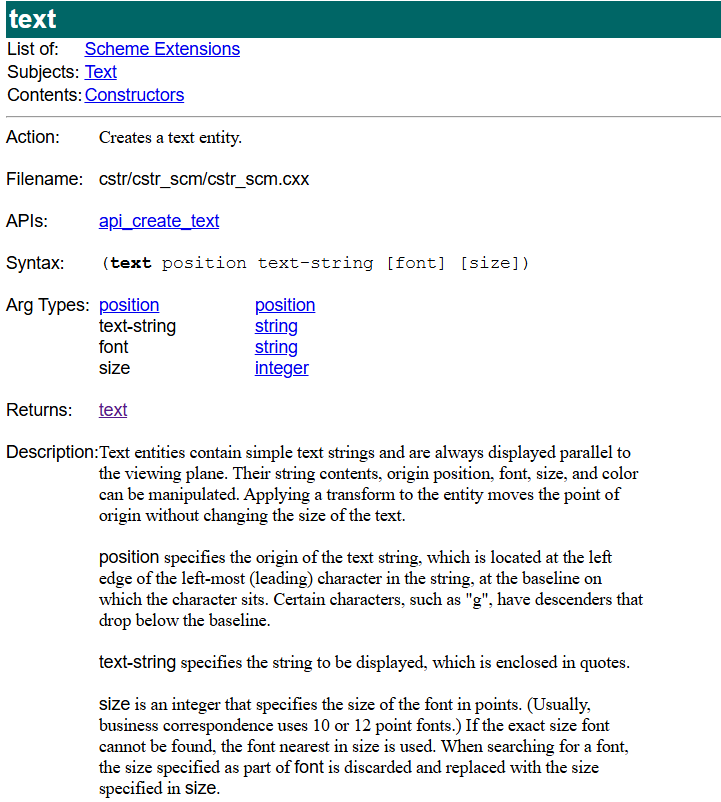

Just some of the code that writes to the CAD window (Acis). From what I can tell they did not add into their code the option to change the font etc which is a normal function of the acis code as per above.

Link to comment
Share on other sites

Please sign in to view this username.

 I see.  Thanks for sharing the code option.  Very helpful.


And hey... who's this guy?

No alternative text description for this image



Flying to Oberkochen and making it happen.  Nice work.



Link to comment
Share on other sites

my belly is not actually that big, they just fed me well, I actually lost even more weight after fasting.

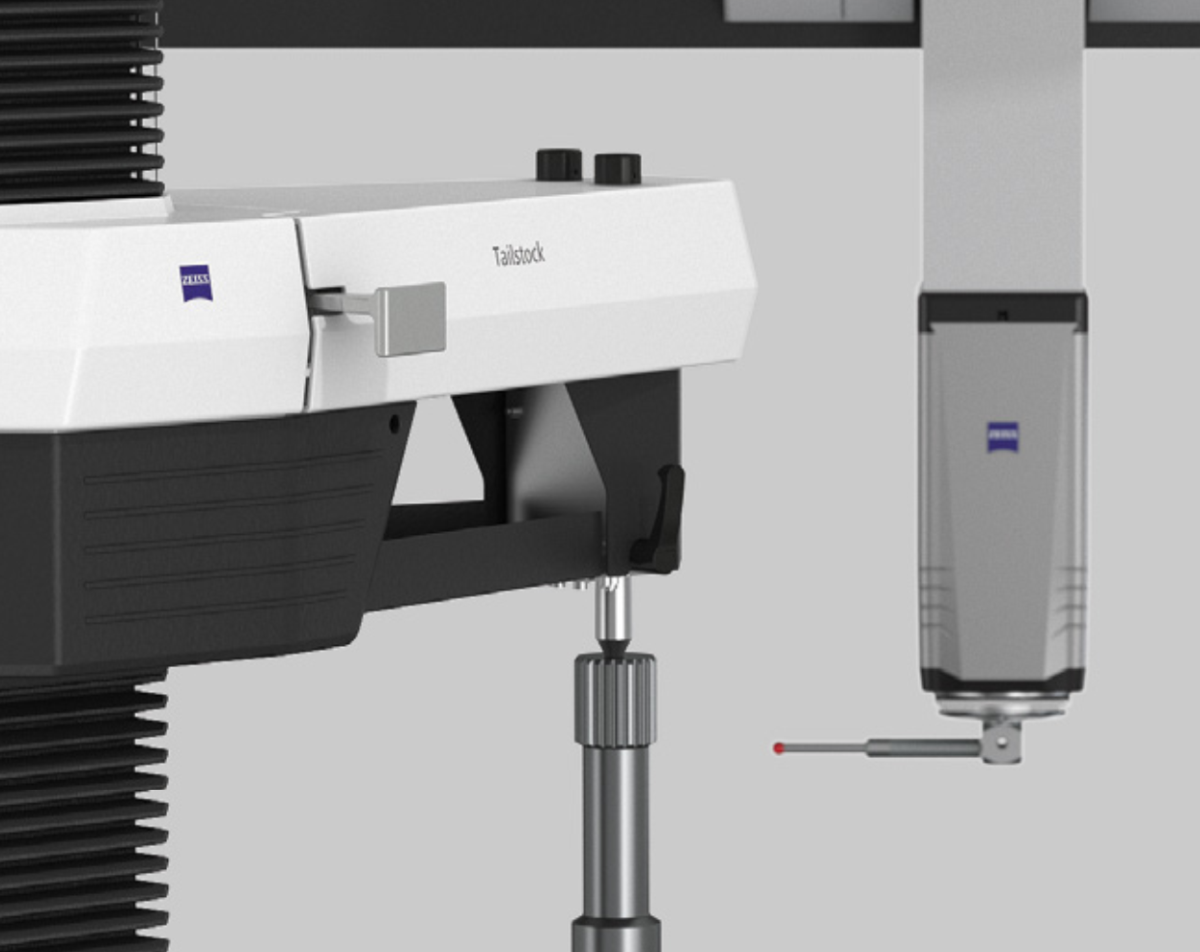

but yeah you found me, with a couple brilliant Zeiss guys picking up the 1st Zeiss T/S for USA and my company Moog Aircraft.

Pretty versatile piece of equipment.



Wenzel is now offering something similar as well.



  • Like! 3
Link to comment
Share on other sites

Please sign in to view this username.



Outstanding! That must have been a memorable trip.

I've seen that T/S device in marketing images, but I don't know much about it.

Is the top connecting point always a tapered center?  Interested to hear your thoughts after getting some miles in on it, per what you're allowed to share.

P.S. I've inspected plenty of Moog components upstream.  Historic company.  I remember being impressed by the quality of their drawings.




Link to comment
Share on other sites

Jeff,



 Yes usually a tapered center, however anything can be adapted via a standard Morse taper.



Same high accuracy, precision and quality of Zeiss , coupled with a new 5th axis to inspect part families. We got it to back up 2 machines, so kind of 2 for 1 deal.

Link to comment
Share on other sites

Please sign in to view this quote.

Hi Zak,

Will be great if all customers are able to access this knowledge-base. If I try to access the DB from Germany I get always an error 404 😞

  • Like! 1
Link to comment
Share on other sites
