How to see the value of each raw point taken in a feature.

[[Al...]]

A client has requested to see the value of every point taken. He is not satisfy with just the result of the characteristic. For example if a point is taken for plane flatness, they want to see the value of every one of the 800 points taken on that plane.

[[Dr...]]

Hi Alvaro,

Seeing the “value of every point taken” might mean different things to different people, but if you provide the Cartesian coordinates (in other words, X/Y/Z values) as a text file, that’ll satisfy 90% of requests in my experience.

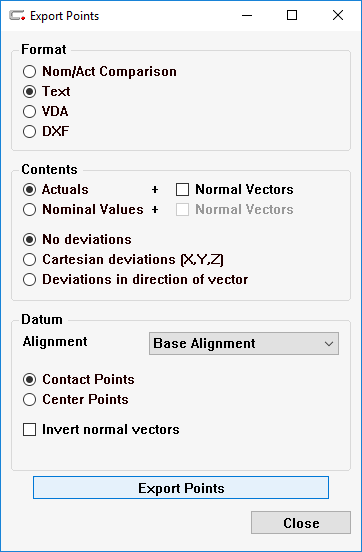

To do so, right-click on the feature of interest and select “Export Points” near the bottom of the menu. I’ve attached the standard settings I use to export Cartesian coordinates; feel free to ask about the options if you’re interested.

If you need to do this for a lot of features/parts, you’ll want to explore Resources > Results to File > Export Points; after turning this option on, the configuration options use the same ideas as if you’re exporting points from a singular feature.
