Alignment

[[Ma...]]

Hi everyone,

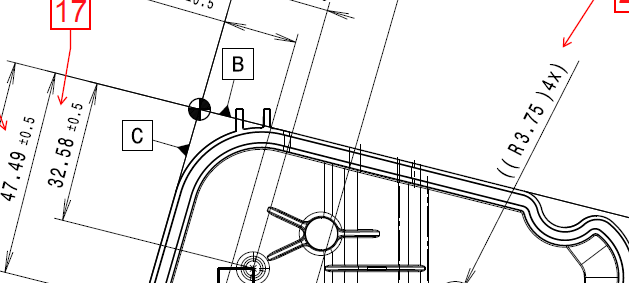

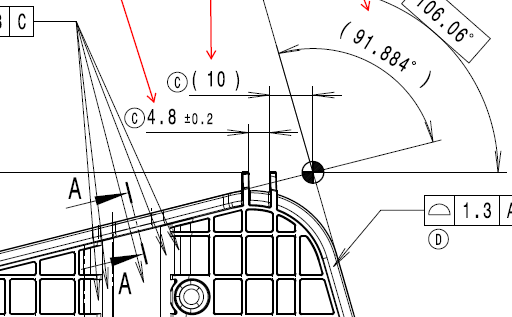

How I can create alignment like this? A is a plane, references B and C are not perpendicular to each other, they are at an angle of 91.884°. When I try to create an alignment based on these references, the software automatically adjusts it to 90°.

Thanks for your help,

[[Ma...]]

Turn method to Geometry instead of ISO

[[Ma...]]

still the same problem Martin

[[Ma...]]

Then what about using intersection of B and C to get the point and then use this point instead of C?

Or any of the last datum from those three.

[[Ma...]]

So i did a research with help of SolidWorks.

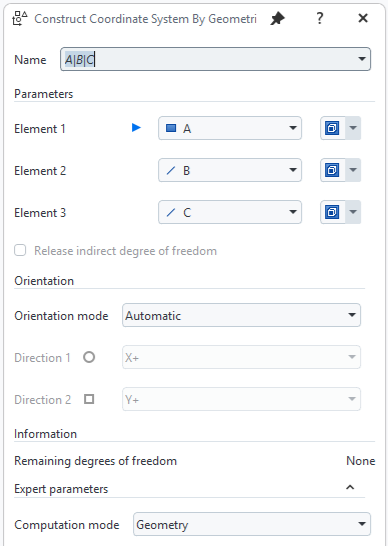

I did construct coordinate system by geometries like this

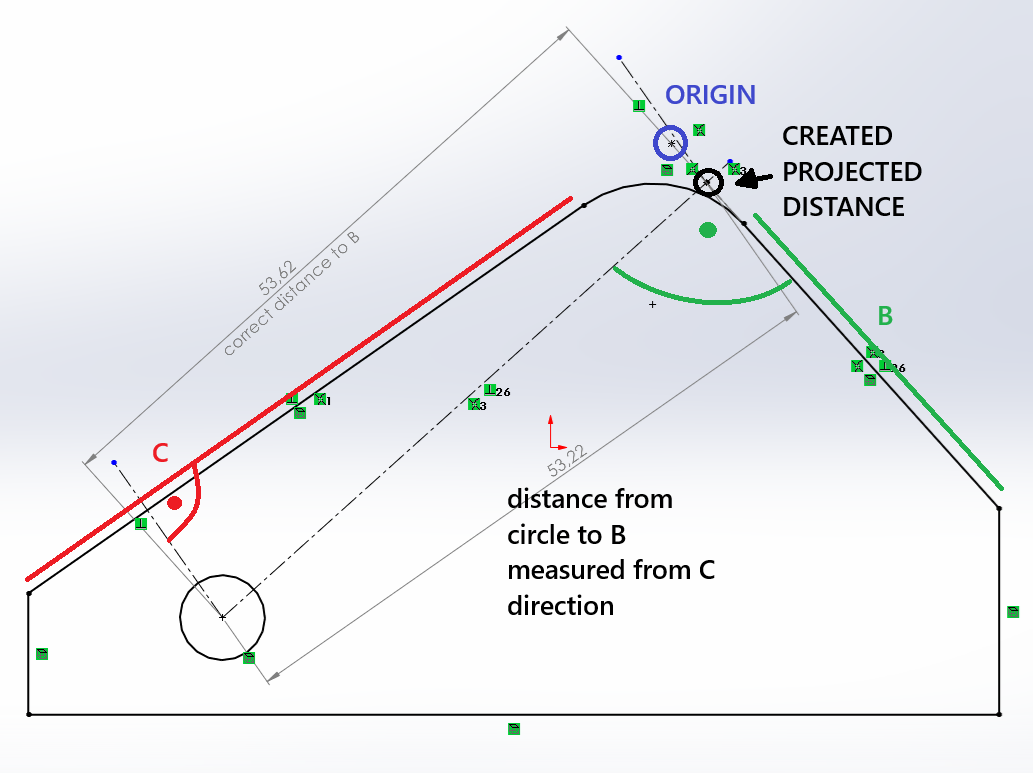

Then i did create projected distance: circle/point from cylinder and B - used referenced construction.
Then i reported distance X and selected correct coordinate system. It was giving me correct nominal.

Here is what i got when i created bad coordinate system ( A|C|B ) and measured projected distance circle->B

[[Ma...]]

Thank you very much Martin, i will try it with your method 🙂

[[Ch...]]

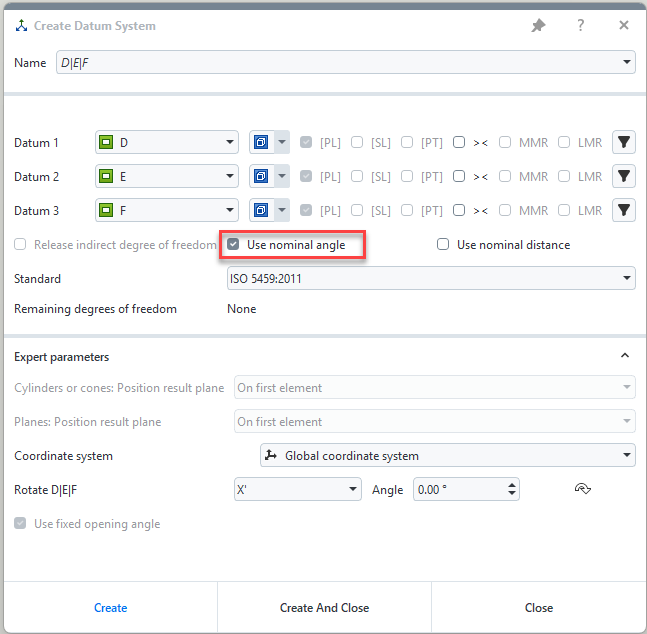

Additional hint: You can create an alignment from a nominal and actual datum system, and inside the datum system dialog you can find a option to use nominal angle instead the 90 degrees defaults.

If I understood your problem correctly, this can save some construction work.

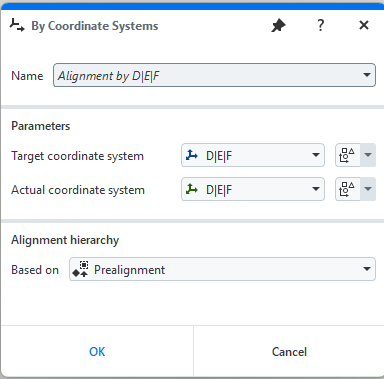

Afterwards you have construct a datum system from your elements, simple create an alignment using



Hope this helps,

Christoph Schult



[[Ma...]]

Thank you Christoph

[[Jo...]]

Please sign in to view this quote.

Coming from CMM with age old software, this would have also been my approach and a point is enough for the last degree of freedom.
