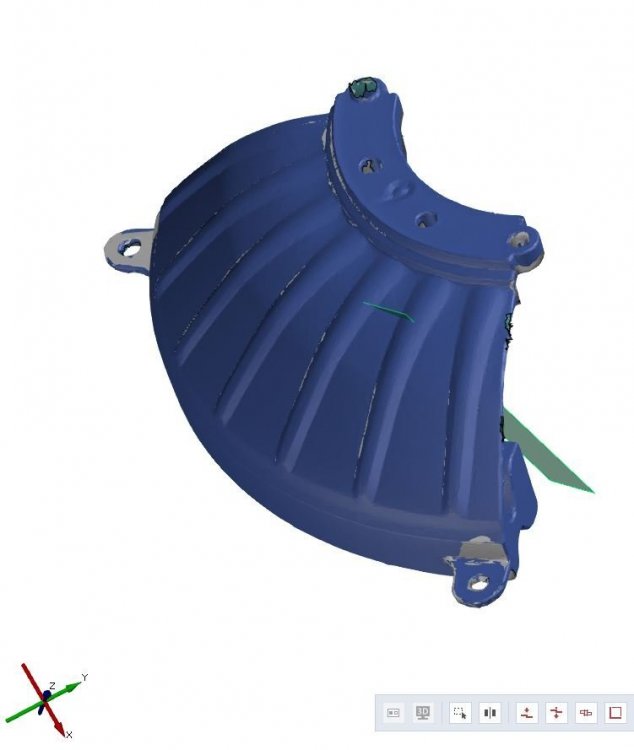

[Pi...] Posted February 13, 2023 Share Posted February 13, 2023 Hello, how can I do a section on a plane made by myself not the referential plan. Link to comment Share on other sites More sharing options...
[Na...] Posted February 13, 2023 Share Posted February 13, 2023 Hello Pierre, you can chose this plane in the dialog as the reference plane. Nanno Link to comment Share on other sites More sharing options...
[Pi...] Posted February 13, 2023 Author Share Posted February 13, 2023 Hello Nanno, I tried to select it in the left menu and also by clicking on the plan, but it always keeps the same cut . Is there a tuto for this? Link to comment Share on other sites More sharing options...
[Na...] Posted February 13, 2023 Share Posted February 13, 2023 Hello Pierre, there is an example in this introduction course (part simple inspection): https://training.gom.com/home/LearningPath/7265 Regards, Nanno Link to comment Share on other sites More sharing options...
[Be...] Posted February 13, 2023 Share Posted February 13, 2023 Hi, one further hint: To create an inspection section you have to use a nominal plane. A nominal plane is created on your CAD data. If your plane is created on actual data and you need a nominal data you can call 'Operations -> Elements -> Convert to nominal data'. But keep in mind: The parametric for your nominal element will lose their creation history. Therefore I recommend to construct your nominal plane directly on the nominal dataset. Hope this helps?! Regards, Bernd Link to comment Share on other sites More sharing options...
[Pi...] Posted February 15, 2023 Author Share Posted February 15, 2023 Thank's, I have to try. Link to comment Share on other sites More sharing options...
