GDT linear size doesn't show green, yellow, red tolerance bar on report

[[Ti...]]

It appears you are required to use some sort of GDT measuring method to apply LMC or MMC. When I do this I get the below result. The check label shows the tolerance color bar, but in the report it is blank. So for the moment I'm then doing an additional Disc Caliper or something similar.

Am I missing something to correct this?





[[Na...]]

Hello Tim,

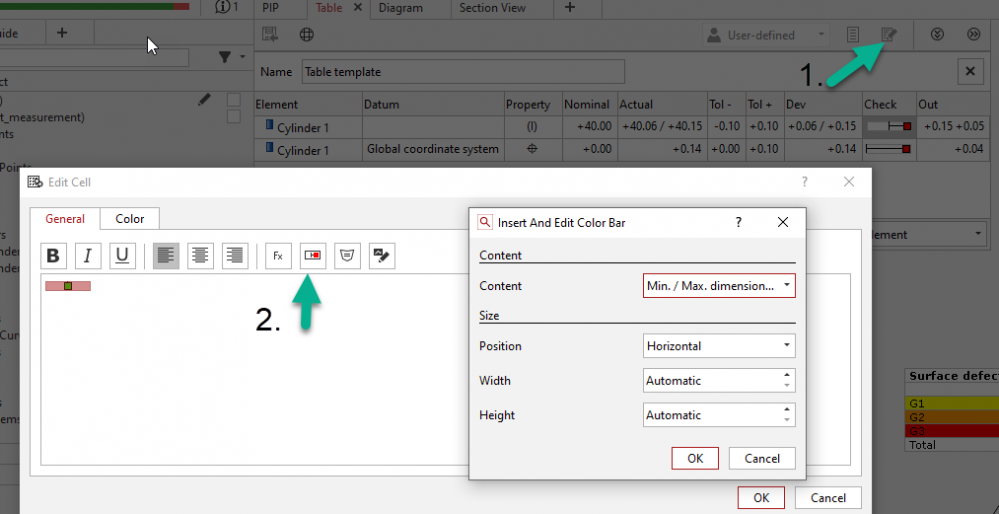

you can add the color bar when you edit the table template (double click on cell in the edit mode).



[[Ja...]]

Hey Nanno , hope you are well.  If I may ask the awkward question ...is there a reason why there is no default colour bar in this use case?

[[Ti...]]

Please sign in to view this username.

Thanks again as always.  I'll second what

Please sign in to view this username.

says, a default color just like the others would seem more intuitive to me. I was simply doing another similar check to get the color output.
