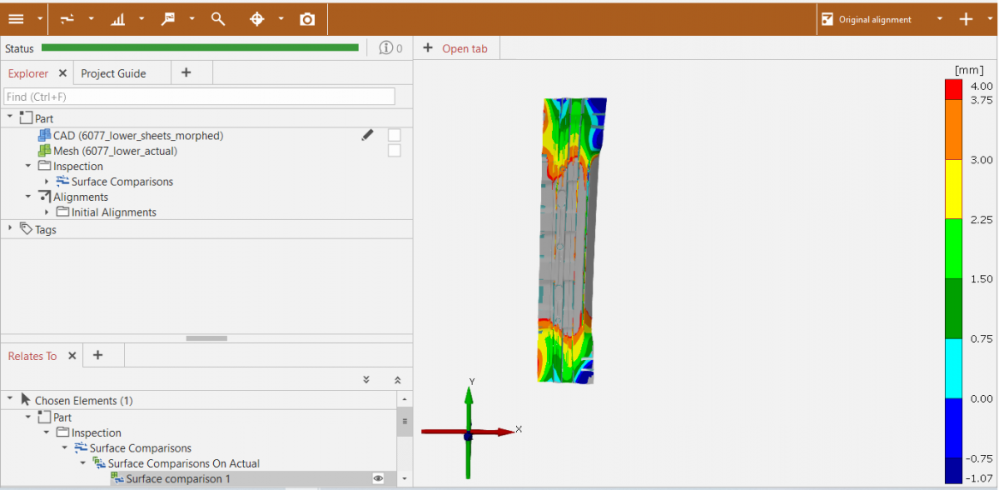

[An...] Posted March 17, 2021 Share Posted March 17, 2021 Hello.. novice user here. I am trying to so a compare between CAD and Mesh.. but am getting some "Grey" areas I dont know how to get a complete colour map through the model.. The ends look good, but there should be a deviation map in the center area's as well.see image attached.. Link to comment Share on other sites More sharing options...
[Na...] Posted March 18, 2021 Share Posted March 18, 2021 Hello Andy, please edit the creation parameters of the surface comparison on CAD in the explorer under "Inspection" and check the "Max. distance". If the mesh is outside of the maximum distance, no value will be calculated. Regards, Nanno Link to comment Share on other sites More sharing options...
[An...] Posted March 22, 2021 Author Share Posted March 22, 2021 Thanks.. Looks like I cannot edit Max Distance.. and I need "Professional" for this.. seems like a pretty basic command Link to comment Share on other sites More sharing options...
[Na...] Posted March 23, 2021 Share Posted March 23, 2021 Hello Andy, the parametric (like editing existing checks) is disabled in the free version, but you can create a new surface comparison with a different distance. Regards, Nanno Link to comment Share on other sites More sharing options...
[An...] Posted March 23, 2021 Author Share Posted March 23, 2021 Got it.. got a trial of the Professional version and it worked. Will give it a go and upgrade if needed. Thanks for your help Nanno Link to comment Share on other sites More sharing options...
