Selection in 3D

[[Sa...]]

Hello there

I am trying to do selection (Edit>Selection 3D>Geometry-Based Selection>Select Circle-Based), cannot make it work (as shown in picture), any ideas would be great, thank you.

GOM4.stl

[[Na...]]

Hello Sam1,

do you want to select the edge of your bore with this function? It will only work well on 2D-data like sections or curves.

You could measure the circle by a section, which can be used to fit a circle in it. The selection tool should work on that section as well.

Regards,
Nanno

[[Sa...]]

Hello Nanno

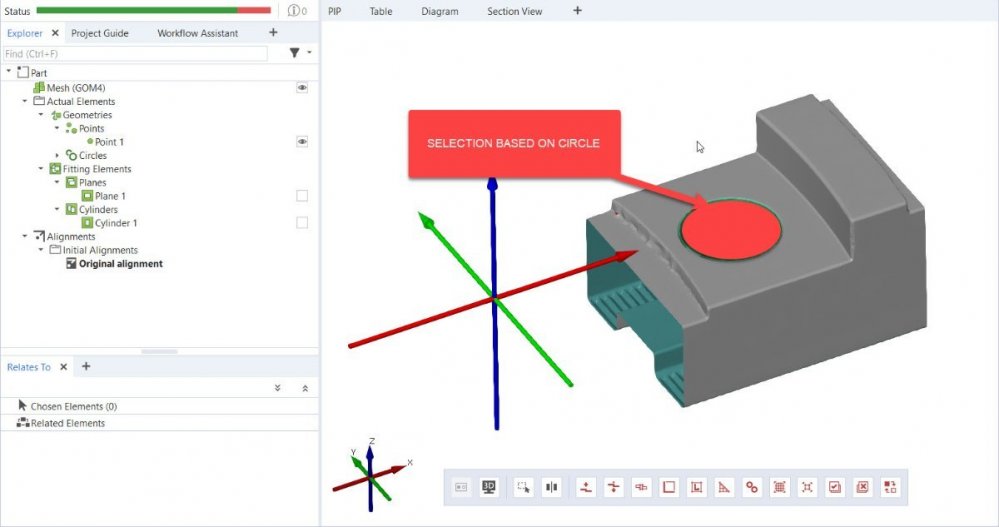

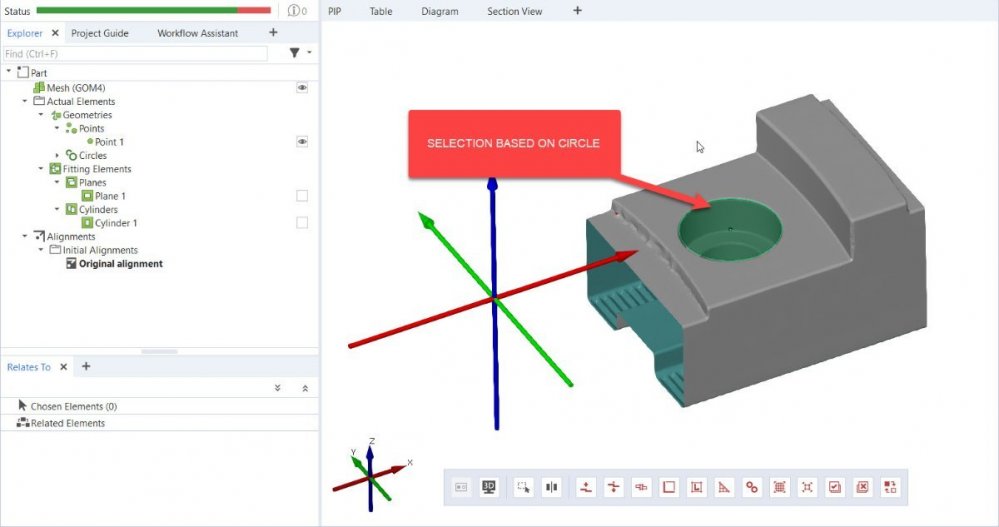

I am trying to select whole area under this circle (as shown in picture), Is there any other way ?, I am trying to do precise selection (circles, rectangle, or curve etc.) to minimize effort.

What is the use of edge selection (section) etc ?

[[Na...]]

Hello,

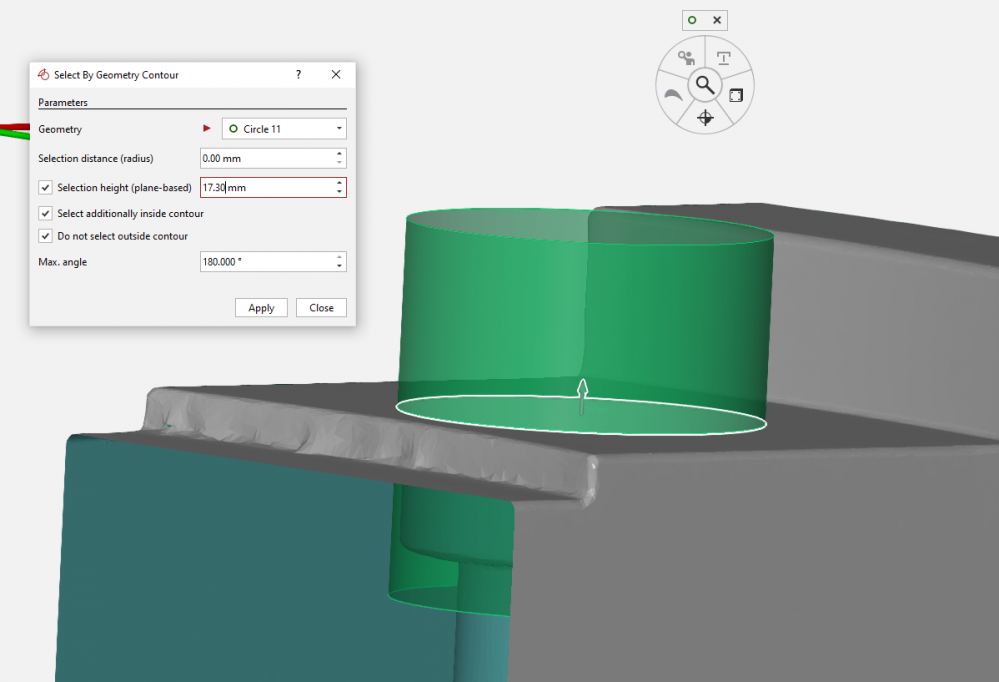

please try "Select By Geometry Contour" (https://techguide.gom.com/en/gom-software-2021/article/cmd_selection3d_select_by_geometry_contour.html):

Some selections are only helpful with a CAD, like edge or patch selection.

Regards,
Nanno



[[Sa...]]

Hello

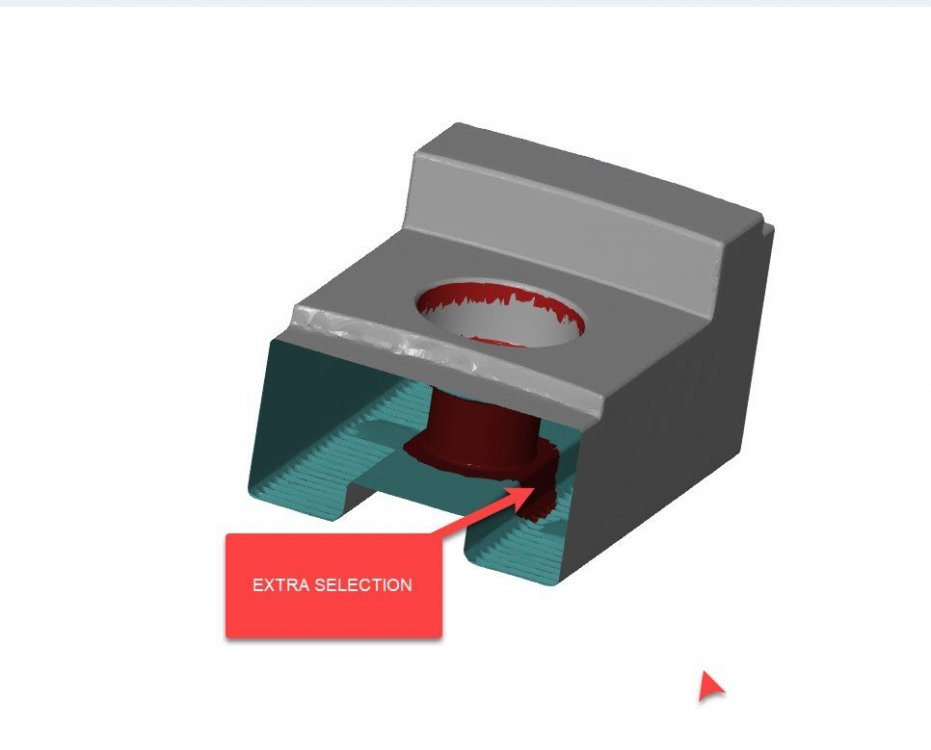

1. I tried it works well as shown in (PICTURE1), only problem, its doing selection through surface, selecting extra. I am trying to do (Select on Surface).

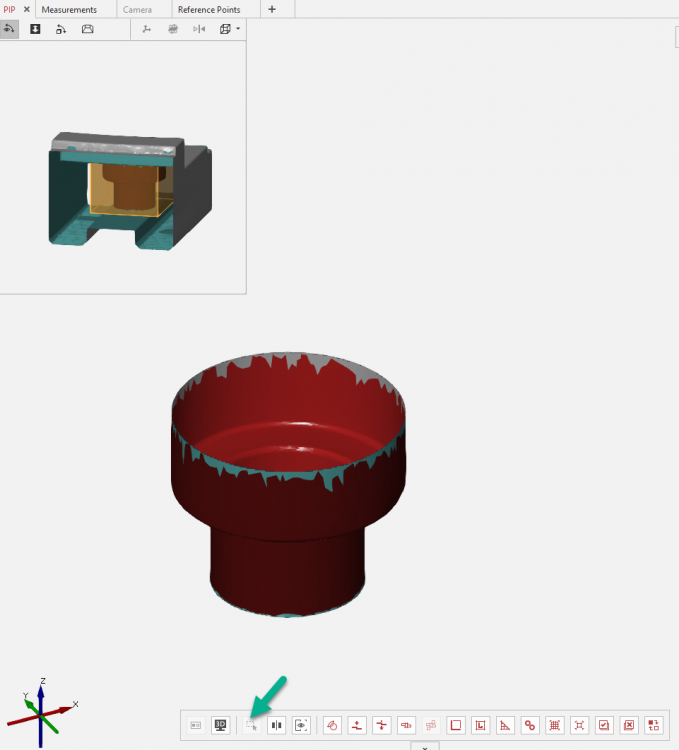

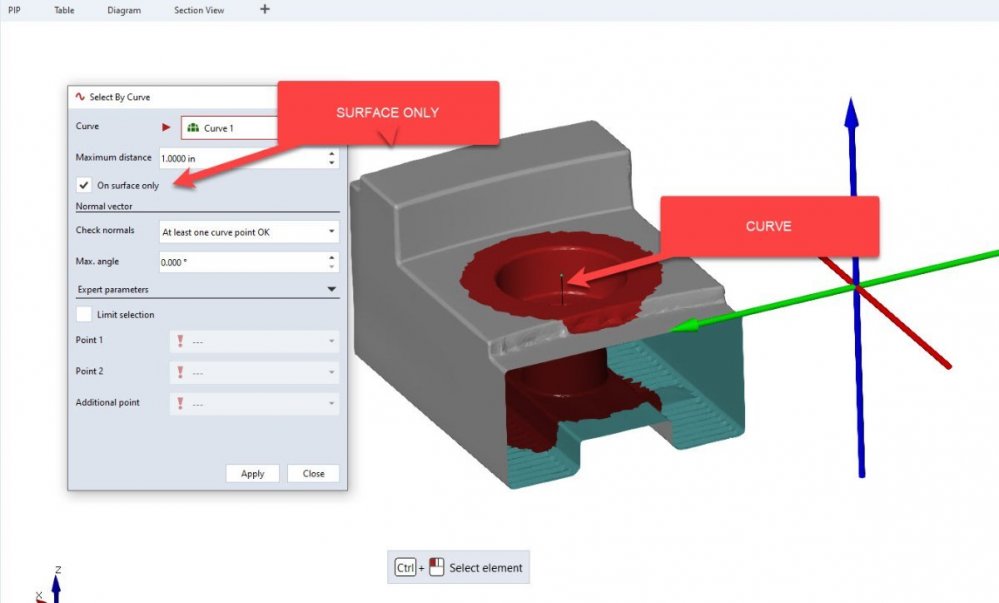

2. I tried different way (Edit>Selection in 3D>Other selections>Selection by Curve), having same issues, as shown in (PICTURE2), even through, I checked (On surface only) button.

Any better ideas, so I get selection only on surface ?

[[Na...]]

Two Ideas:
-select the cylindrical parts with the cylinder-based selection, the planar part plane-based
-use the clipping tool to only show the areas you want to select and click select all

Regards,
Nanno
