[Ti...] Posted October 2, 2022 Share Posted October 2, 2022 Using GD&T checks like flatness and surface profile you can usually just tab into the check and in the properties turn on 'color deviation'. I ran the same steps with 2021 and 2022 and cannot get the color deviation working in 2022. Anyone else have this issue? Link to comment Share on other sites More sharing options...

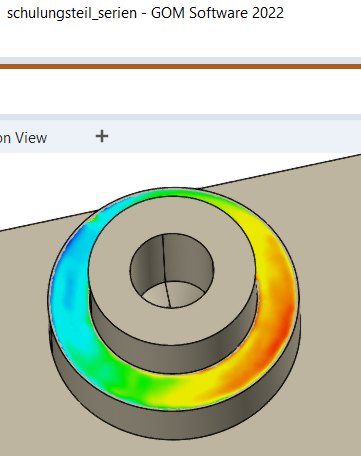

[Ch...] Posted October 4, 2022 Share Posted October 4, 2022 At least for a flatness tolerance I see the deviation plot as you can see in the following screenshot: Maybe the deviation plot is hide under the CAD or the mesh. Otherwise please contact your local GOM partner to get further support. Christoph Schult Link to comment Share on other sites More sharing options...
[Ti...] Posted October 9, 2022 Author Share Posted October 9, 2022 Please sign in to view this username. I continued to have this problem until I reinstalled just now. The problem went away. I believe I reinstalled the same exact version, so I don't know why it fixed itself, but it is working now. I did nothing different, I'm familiar with how to show a flatness profile color map. It wasn't working for some reason. Link to comment Share on other sites More sharing options...
