Combining Features for Profile

[[Lo...]]

Hello everyone

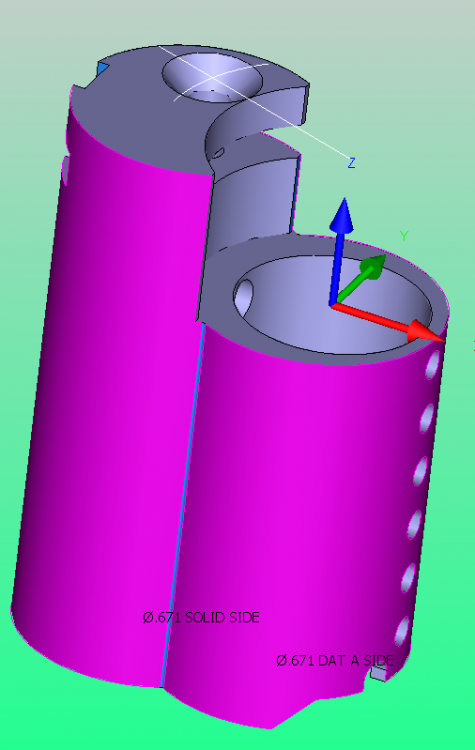

I have a question about combining features for one profile. I have these 2 cylinders, measured as individual cylinders, but there is 1 total profile that applies to the surface as a whole.

I am currently recalling the 2 cylinders into 1 point, and this is giving me the combined profile dimension, but it prevents the CAD evaluation graphic display from showing the hits in a heat map. What are your suggestions here? In general, what are your strategies for combining multiple features for one profile?



Thank you in advance

Edited December 20, 2024

[[Ro...]]

Easy Peasy, If you have Free Form.

Create a new FF feature, open it and in the center dropdown select "Recall Feature Points" and select all the lines and circles and spheres and planes and cylinders you want.

Put that FF into a profile that's it.



[[Lo...]]

Please sign in to view this quote.

That is awesome, thank you Roberto.
