Construct a plane on the CAD from a dialog

[[Er...]]

Hi everyone,

I would like to create a script that prompts the user to select a planar patch on the CAD.
Then the script regain take control and create a plane on the patch programmatically.

Or, as an alternative, if would you to build a generalized Construct > Auto Plane (Nominal)... dialog in a script, in such a way that the user can do the point selection on the CAD.

Any help would be appreciated! Thanks a lot in advance.

regards,

Erik

[[De...]]

Hey Erik,
They have a similar workflow on the github page.

The wizard dialogs can get a bit confusing, so if you get stuck don't hesitate to ask for help.

not sure what version you're using, the link below is for 2025.  If 2023 --> replace 2025 with 2023 in URL.

https://zeissiqs.github.io/zeiss-inspect-addon-api/2025/howtos/python_api_introduction/creating_wizard_dialogs.html

[[Er...]]

Hi Devon,

Thanks, I'll look into it. It looks quite complicated but I'll just give it a try!😃

[[Ja...]]

May i ask why you are looking to do this?  It is a curious thing to want to code. Perhaps with an understanding of the end goal there may be less complex solutions.

[[Er...]]

Hi James,

Thank you for asking!

I would like to let the script construct the midplane between two side surfaces of a gear.

So the script asks the user to select surface #1, then surface #2 and then the script takes control again and constructs the midplane.

I need the midplane to construct a section on the involute surfaces of the teeth.

Best regards,

Erik



[[Na...]]

Hi Eri,

maybe you could misuse the GD&T quick creation for a linear size for this?

It should be possible to create and copy clusters with the needed elements on a gear, too.

Nanno

[[Er...]]

Hi Nanno,

Thanks for you reply.

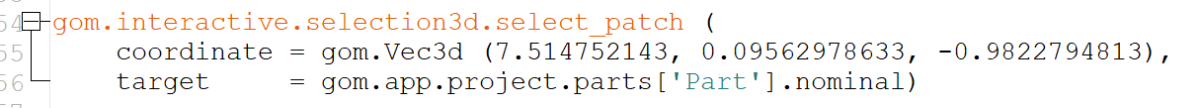

I used the option in the script editor to turn a fixed (recorded) selection into a prompted interactive selection. This turned out to work very well.

Edited July 16, 2025
