Creating a line between two circles


---
 Share

Recommended Posts

---

Hello

This may be a rather silly question, but coming from Quartis (Wenzel) I am so confused. I am measuring (optically) four circles. One centre hole and three holes in a pattern around it. I want to create lines from each hole to the centre and to each other to 1: create an alignment from these lines and the centre and 2: measure the position tolerances.

How can  I create these lines?

Thanks in advance!

Link to comment
Share on other sites

---

Hi Edwin,

 I hope this will help you?! :

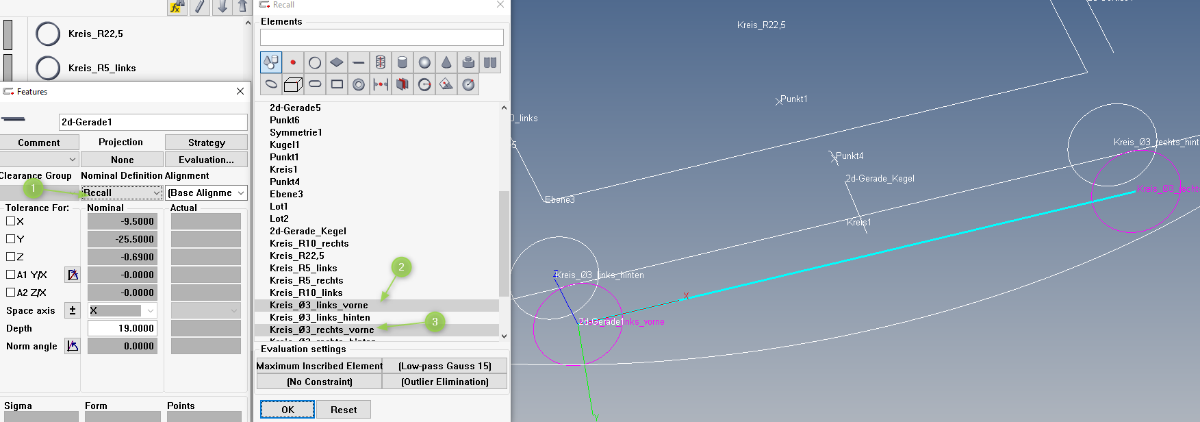

open 2-line, then change nominal definition> Recall: select youur circle.

Open image.thumb.png.906a818f7acd515778281c1ee7c0c7d8.png

  • Like! 1
  • Thank you! 1
Link to comment
Share on other sites

---

I would use a 3d line, which is a constructed feature. The 2d line is a measured feature.

  • Like! 2
  • Thank you! 1
Link to comment
Share on other sites

---

Thank you both! Solved it. So different to what I am used to. Thanks!!
