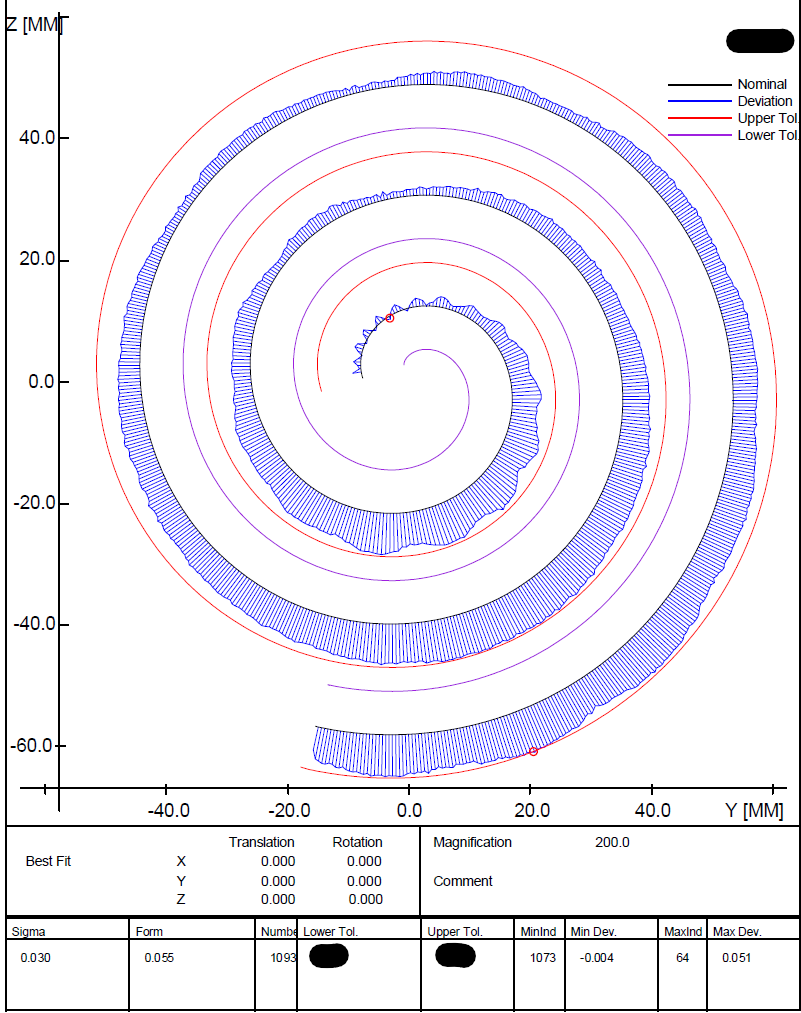

[Jo...] Posted July 10 Share Posted July 10 Hi All, I am looking to understand if it is possible to create a profile plot similar to the below curve form plot. I would like to do this without the use of CAD presentation. TIA! Link to comment Share on other sites More sharing options...
[Kl...] Posted July 11 Share Posted July 11 Hello Joseph PiWeb Reporting is more flexible compared to the "old" plot. I add an example pdf for radial and axial evaluation created with CALYPSO rev 7.6 Please tell me, if you need the inspection. Greetings from Germany Klaus 9.pdf Link to comment Share on other sites More sharing options...
[Jo...] Posted July 11 Author Share Posted July 11 Thanks for the reply Please sign in to view this username. ! Do you need Piweb reporting Plus for those types of plots? Or can this be done using the free version? I would be curious to see the inspection if you can share it. Thanks, JG Link to comment Share on other sites More sharing options...
[Kl...] Posted July 11 Share Posted July 11 Hello Joseph should run by simulation with dispersion. It's written in [mm]. Customized reports inside inspection, could be modified by standard PiWeb. Enjoy it 🙂 Klaus Spiral.zip 1 Link to comment Share on other sites More sharing options...
[Jo...] Posted July 11 Share Posted July 11 Thank you for posting this this was fascinating! Link to comment Share on other sites More sharing options...
[Jo...] Posted July 11 Author Share Posted July 11 Great thanks Klaus! I will dive into it today! Link to comment Share on other sites More sharing options...
