Exporting Equidistant deviation labels (thickness) as CSV in GOM inspect 2019

[[Fr...]]

Dear ZEISS-GOM user community,

is there a way to export a CSV file with X,Y,Z coordinates and values of an equidistant deviation label grid created from a thickness analysis?

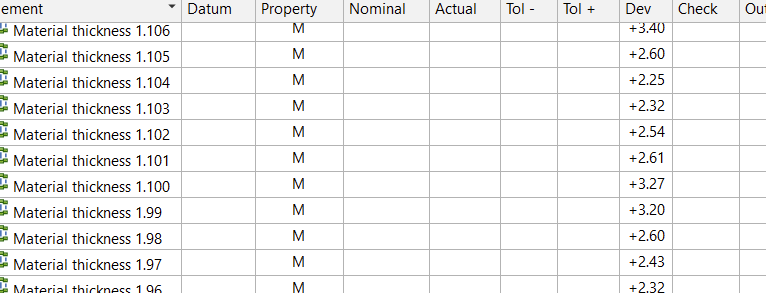

I can make a table but it misses the coordinates:

thanks

f

[[Ma...]]

You can go to Menu File -> Export -> Geometry -> CSV - select your points - if you add dimensions XYZ for those points you will have actuals in exported CSV

Only selected geometries will be exported

A question: i am beggining with Inspect so i have created Surface points and used one by one on Create material thickness inspection point.
Do you have to do it one by one or you can select many on one go ( to create many single ones )

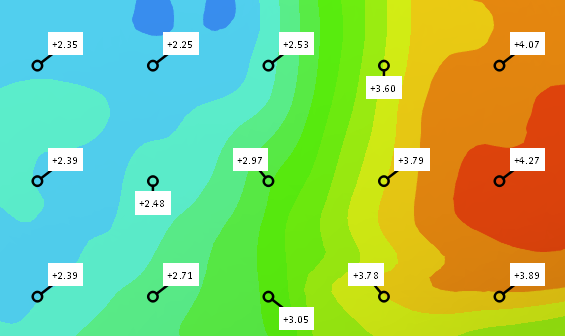

Or if i did it wrong, then post how to achieve equidistant flags like on your picture

Edited October 16, 2025

[[Na...]]

Please sign in to view this quote.

Hi, you could create the surface points first, for example as equidistant surface points -> select them all -> use this: https://techguide.zeiss.com/en/zeiss-inspect-2025/article/cmd_inspection_check_material_thickness_at_points.html

Or you create the material thickness as a surface inspection:
https://techguide.zeiss.com/en/zeiss-inspect-2025/article/cmd_comparison_create_multiple_material_thickness.html



Please sign in to view this quote.

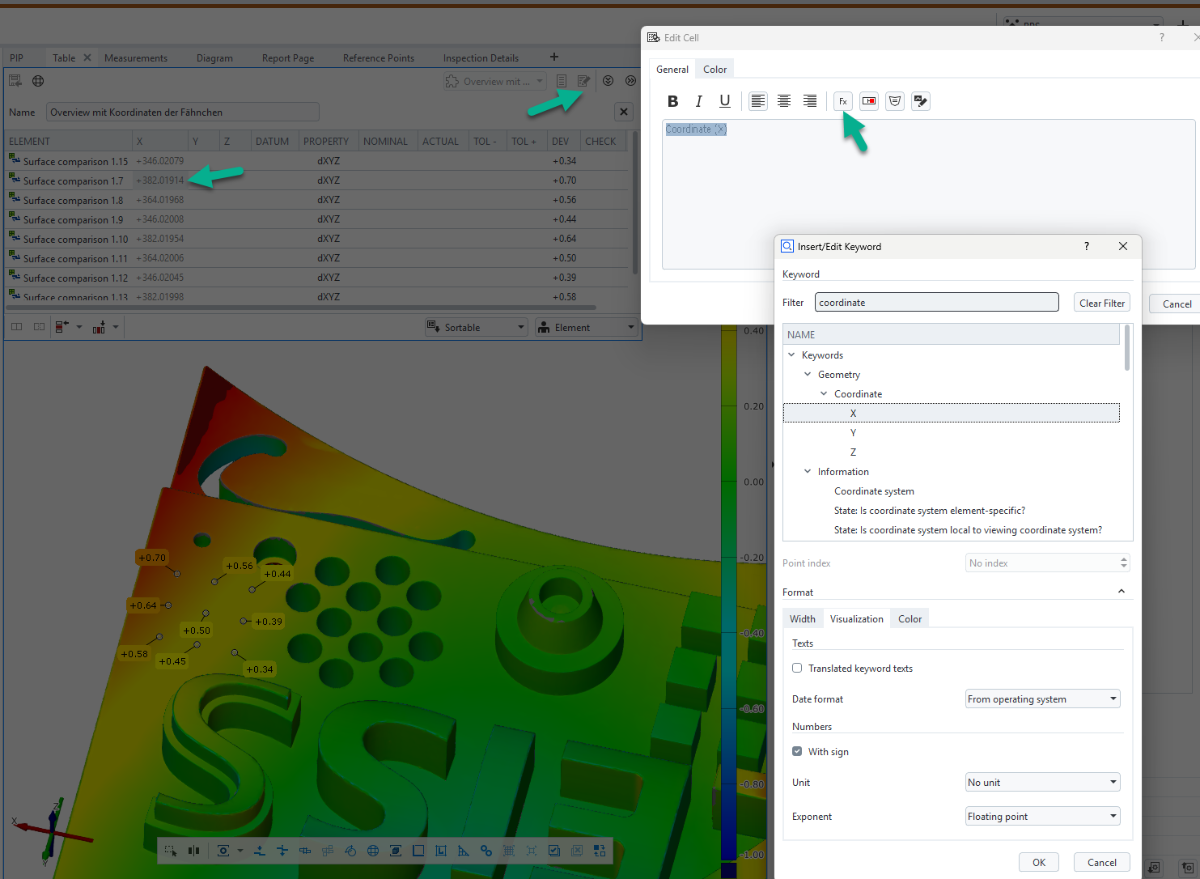

You need to switch the table into "edit" -> add columns -> insert keyword for coordinate into the columns. Here is an example for X-coordinate:

[[Ma...]]

Please sign in to view this username.

 thanks - i was missing that option ( could not find that, looking at wrong spot )

[[Al...]]

We are working with the free version of ZEISS Inspect.

Is there a way to display the XYZ coordinates of the Surface comparison min or max with the free version?
Because of this I can not Edit the Template.
Thanks,

Alain

[[Ma...]]

If you need for just a few points, then make those deviation flags, then make a point and for definition click that flag - it will create point from that flag.
Now you can report it's XYZ
