Automatic Detection of Sharp Deviation from the Surface

[[Ar...]]

Hello,

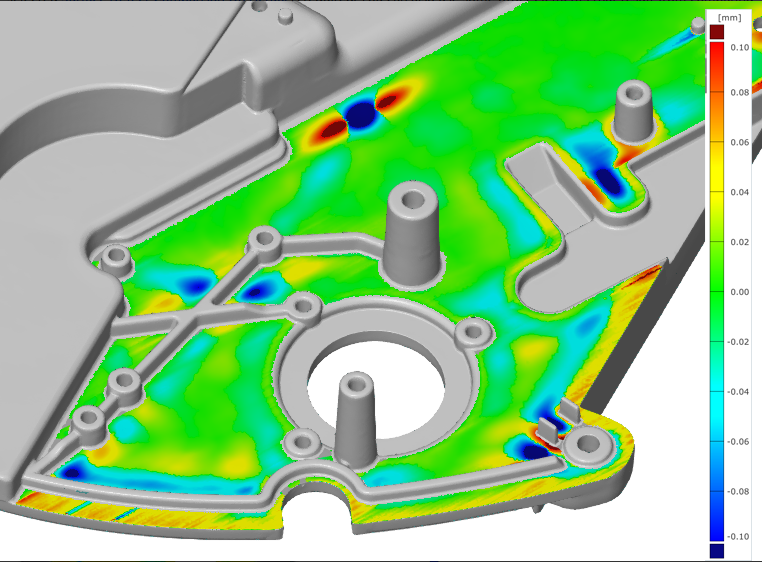

I have mesh/CAD comparison of a certain part. In this deviation analysis I can clearly see the deviating areas but what I am trying to do is to mark deviation where we have a sharp angle deviation from the surface. Does anyone know if this is possible?

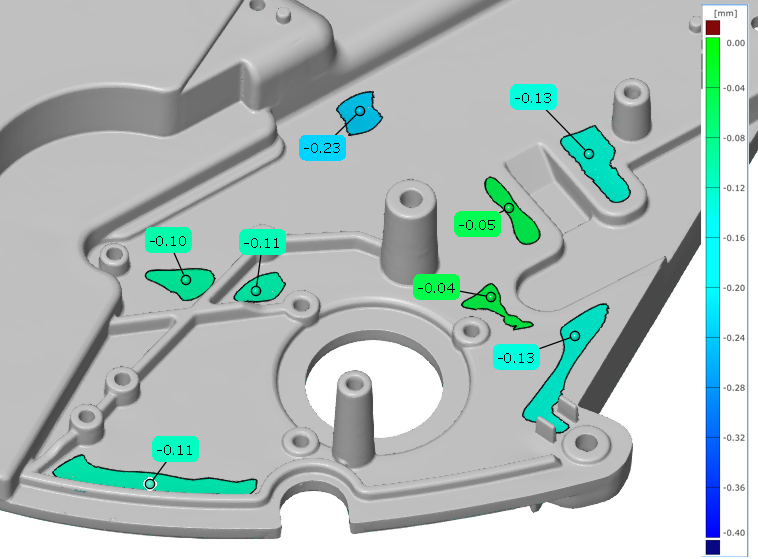

You can see in the image where we have this deviation but I don't know if this is sharp enough or not. Any tool that would give me that measure?

[[Na...]]

Hello Arda,

are you interested in the deviation of the normals of the actual surface to the nominal surface? This function might help in this case: Create Draft Angle Map

If you are interested in the defects, you can create a surface defect map and then create surface defects:

1. Create Surface Defect Map

2. Create Surface Defect Element



[[Se...]]

Hi Arda,

This feature might also help: https://techguide.zeiss.com/en/zeiss-inspect-2026/article/cmd_inspection_create_form_change_range.html
