Check Surface Profile How to work with intersection plane ( // ; Perpend.)

[[Ma...]]

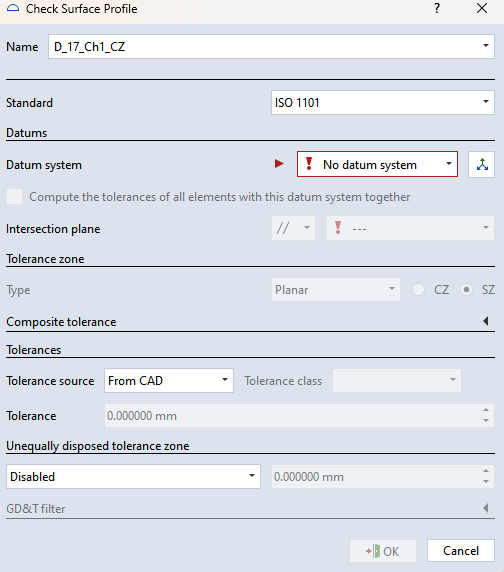

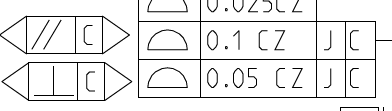

i have a surfaceprofile with  indicators .



How can i activate the intersection plane?  ( // or Perpendicular to C)



Regards

Mark C.

[[Na...]]

Hello,

the intersection plane in the dialog is referring to the filtering method on the bottom. It is not available for surface profiles:
https://techguide.zeiss.com/en/zeiss-inspect-2023/article/cmd_inspection_check_gdat_surface_profile.html#mark-3



Please sign in to view this quote.

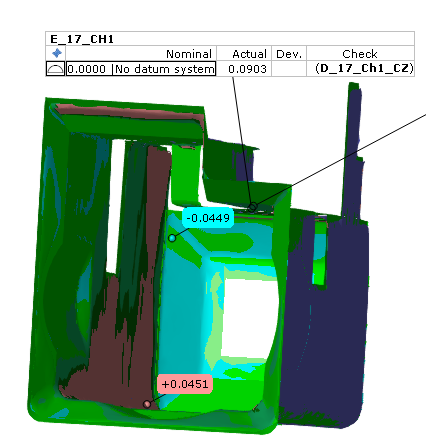

The indicator's intention might be the direction, in which the surface profile is measured (e.g. like scanning with a tactile cmm). In this case you could check the surface for line profile.

Nanno
