3D coordinates conversion to 2D


Recommended Posts


I am fairly new to GOM correlate. I am doing a biomechanical fracture study, where we used reference marks on both sides of the fracture.  The aim is to calculate the displacement of the fracture. I am only interested in the displacement in XY-plane and not in all XYZ.   Is it possible to do an conversion from 3D to 2D in GOM correlate?  Can i somehow find the common rotation axis?

The plan right now is to export the XYZ coordinates to excel and then do the post-processing in another software.



Link to comment
Share on other sites

Hi Huda,

there are different ways to convert 3D coordinates into a 2D coordinate. For example create them as a projection point onto the plane you like to inspect or exporting the image series and only import the series from one of the two cameras.

But i would recommend to stay in the 3D volume because you will generate mistakes while inspecting only in 2D. Check the webinar for types of mistakes https://www.youtube.com/watch?v=pGXuXg7dRlo

You can check all of the displacement in the directions you like to. If you are only interested in the displacement in X and Y-direction inspect only this displacements with the GOM Correlate. The results you will receive, is the X or Y proportion of the displacement of your component based on the alignment of your project.

I hope these are the results you like to receive.

Greetings, Ivan

Link to comment
Share on other sites

 Hi Ivan,
Yes, that does make sense. I will try to do the data processing in GOM correlate.
The reason why I don't want the Z-direction is that i corresponds to the depth of the fracture - which I am not interested in for now.

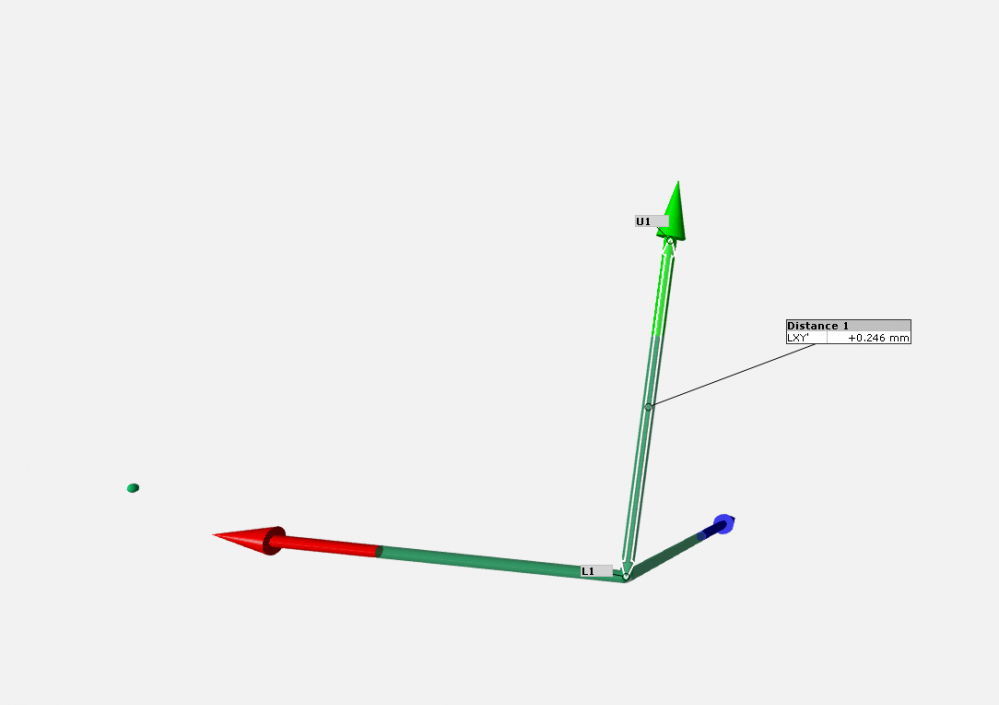

I decided to create a local coordinate system in GOM correlate and then project the points onto the XY-plane:
1. Created a local coordinate system through 3-2-1 alignment
2. Create points on the reference markers

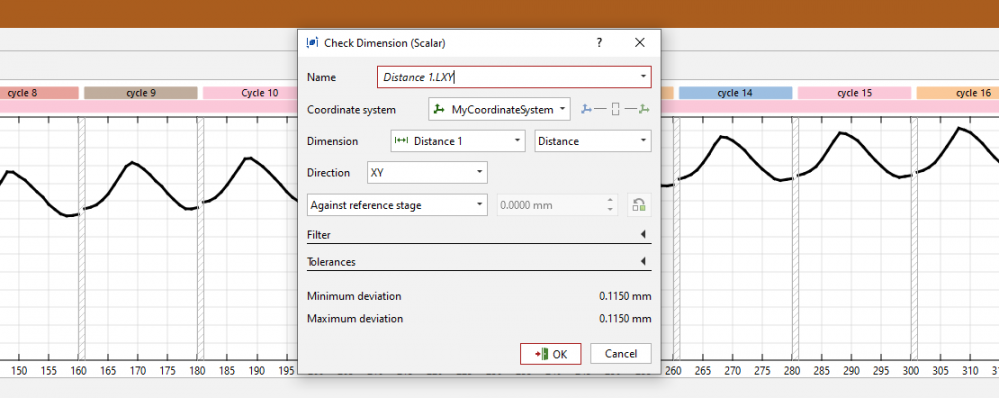

3. Construct distance between the desired points and I chose XY-direction on my coordinate system.
Is this the right workflow? or is there a more accurate/efficient way to do this?
I find it hard to find tutorials and manuals for working with point components and not surface components.
Again, thank you for the help ?
