I am looking to produce a table that shows how many points on a surface comparison sit within my tolerance bands. (Example table below)

- How can I extract the necessary data from a surface comparison to complete this table

- Is there a fast way of doing so which can create a table like this automatically based on the tolerance bands in my colour legend.

Range (mm)			# Points		%
Lower	Upper
-2	-1.5		403		0.05%
-1.5	-1		1302		0.15%
-1	-0.5		29172		3.40%
-0.5	0.5		789203		91.87%
0.5	1		35390		4.12%
1	1.5		2049		0.24%
1.5	2		670		0.08%
Out of Range			887		0.10%

Edited April 22, 2022
Incomplete post

[[Na...]]

Hello Caleb,

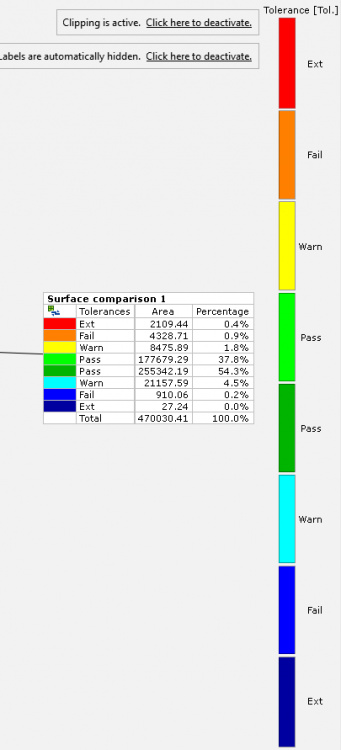

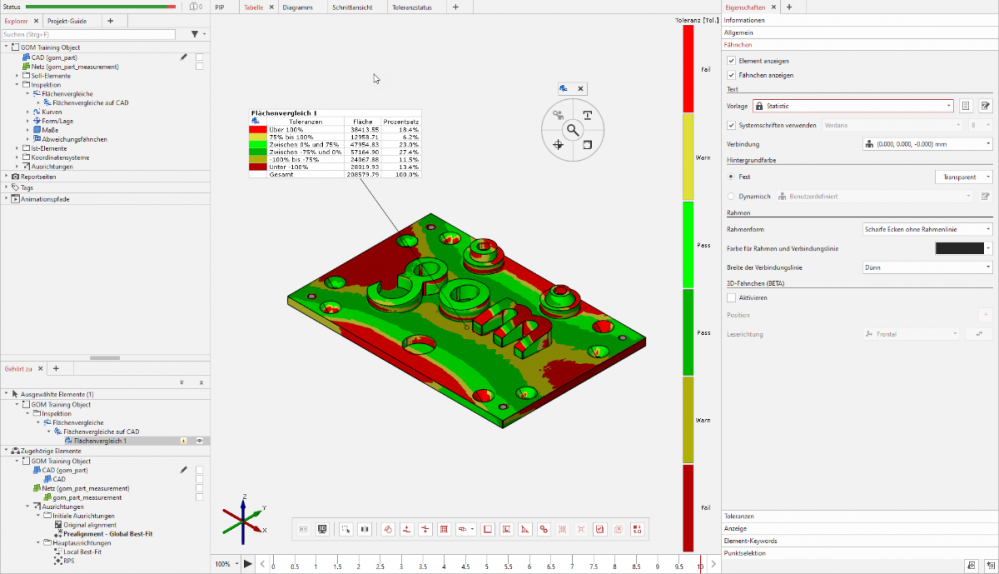

there is a label template for surface comparisons called "Statistic" it will show you these values:

Regards,
Nanno

[[Ca...]]

Hi Nanno,

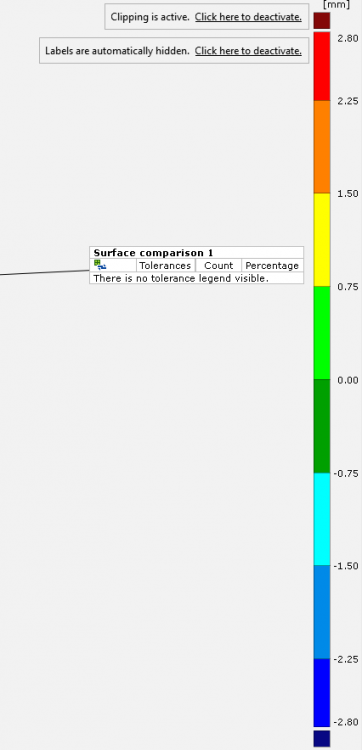

Thanks for your help. That is very helpful and will allow me to perform the checks we need. Is there is a way I can create a similar table based on the 'GOM 8 Colour' legend instead of the tolerance legend? The GOM 8 colour is just a bit easier to work with and create bands for, and displays it in a more suitable way.

Regards,

Caleb



[[Na...]]

Hello Caleb,

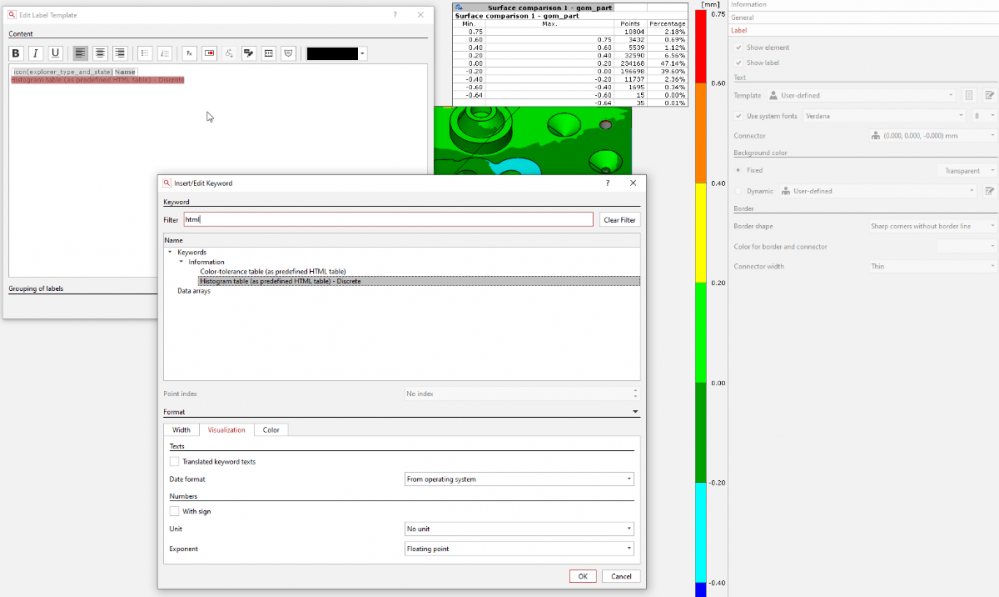

there is a keyword, which will work with the GOM 8 Colour template. You can edit the label and insert it with the "Fx" button:

Regards,
Nanno



[[Ca...]]

Thanks Nanno,

That's great.

Regards,

Caleb

[[Jo...]]

Hi Nanno,

how can I export the numbers from the surface comparison table?

Regards, J

[[Na...]]

Hi John,

you could create a user defined check on the surface comparison to output the values as checks. They can be exported and appear in the table.

The statistic values are under "distance statistics"

Nanno
